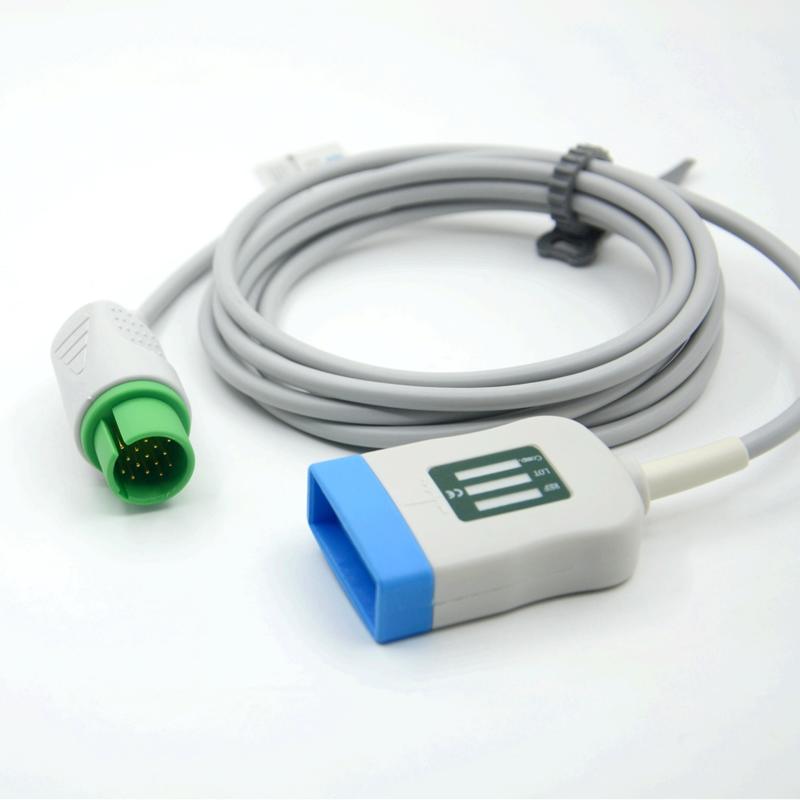

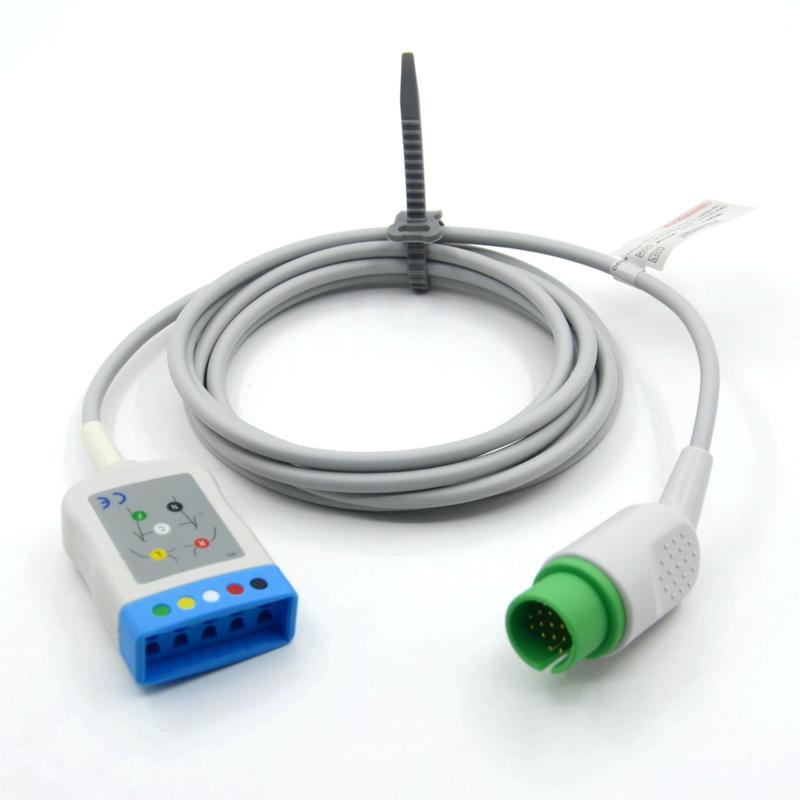

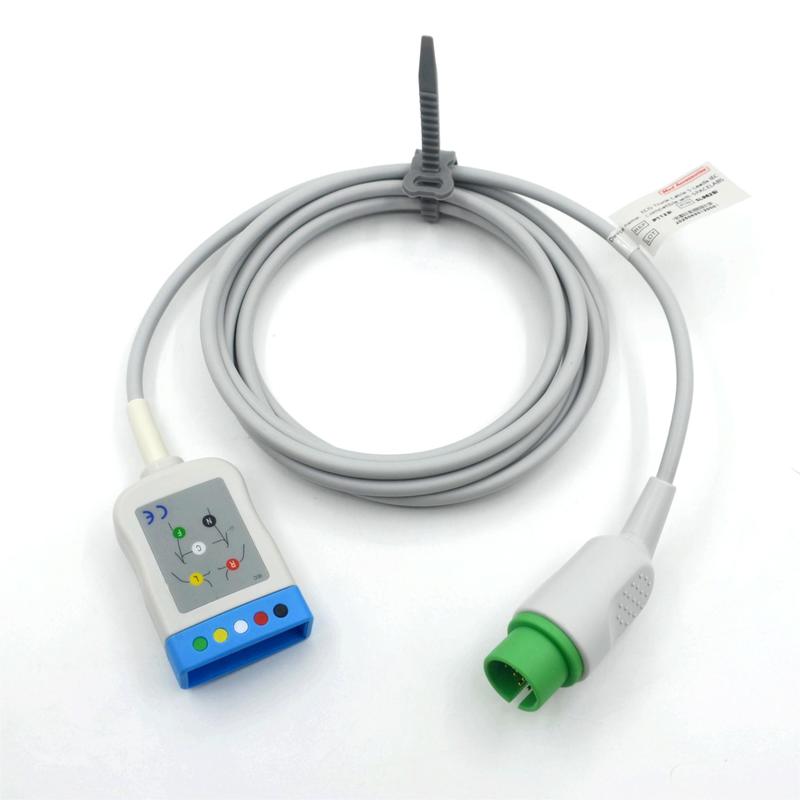

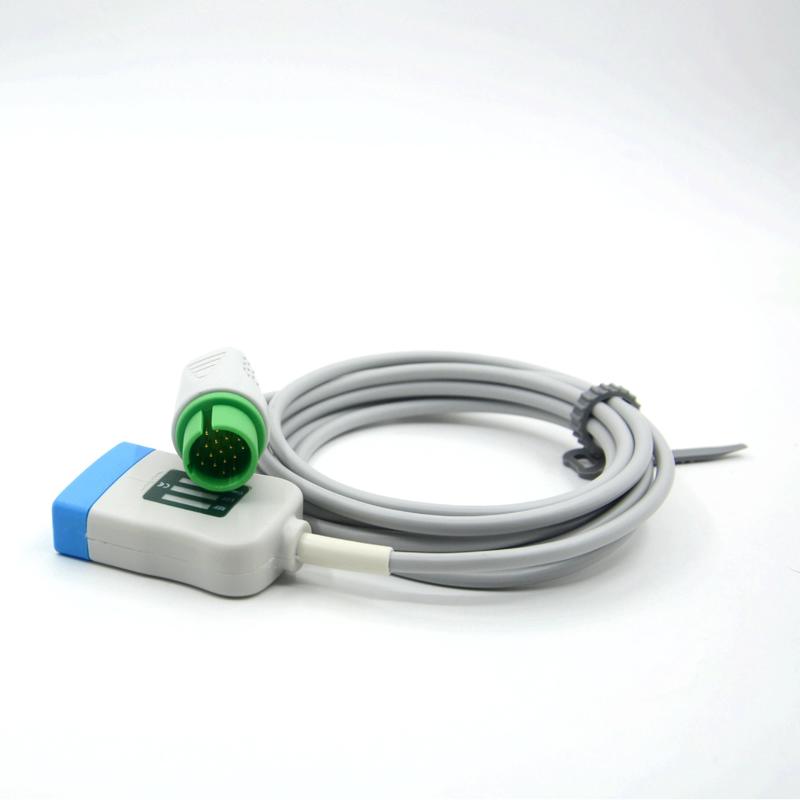

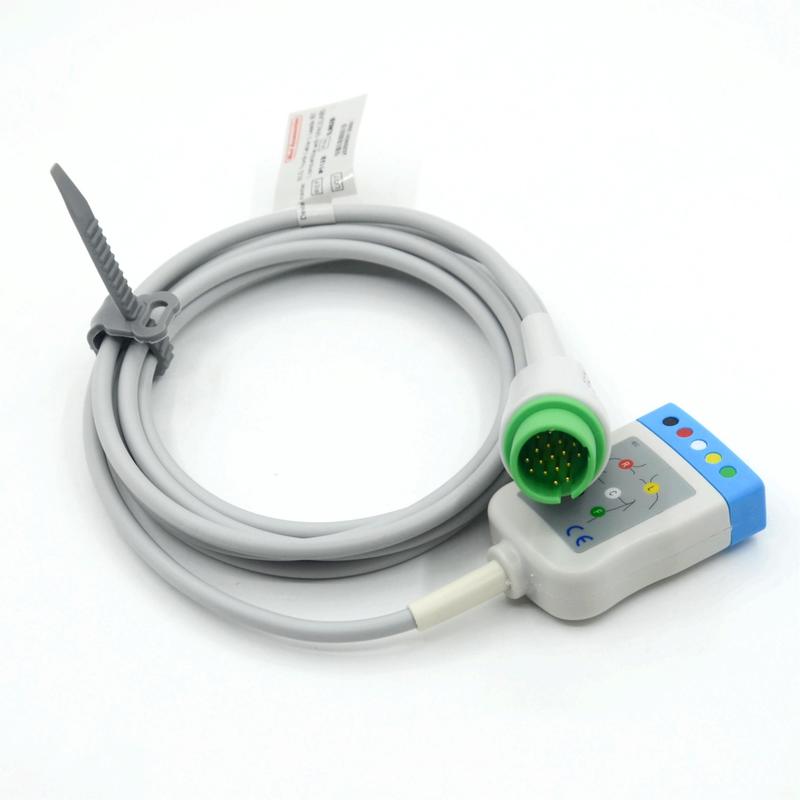

Medical Monitor Accessory Compatible Spacelabs ECG Trunk Cable 5 Lead IEC EKG Cable

Medical Monitor Accessory Compatible Spacelabs ECG Trunk Cable 5 Lead IEC EKG Cable

起源の場所:

中国

ブランド名:

Med Accessories

証明:

CE,ISO,SFDA

モデル番号:

SL9625I

接触米国

引用を要求しなさい
プロダクト細部
サイズ:
2.5m
ストック:
そうだ
材料:
TPU
ケーブルの色:
グレー
鉛:
5 鉛
パッケージ:
個別パッケージ
カタログ:
ECGモニターケーブル
患者の大きさ:
大人/小児
遠位コネクター:
丸型、17ピンコネクタ、デュアルキー
近位コネクター:
対のピン コネクタ
支払及び船積みの言葉
最小注文数量
1個
パッケージの詳細
1個/袋
受渡し時間
約1週間
支払条件
T/T,ウェスタンユニオン,D/A,D/P,T/T,ウェスタンユニオン,マネーグラム,L/C
製品の説明

Product Name: Medical Monitor Accessory Compatible Spacelabs ECG Trunk Cable 5 Lead IEC EKG Cable

Medical Monitor Accessory Compatible Spacelabs ECG Trunk Cable 5 Lead IEC EKG Cable 0

OEM Part Number Cross References:

Manufacturer OEM Part #
AMC CB-61596R
Curbell CBT-05MC-10CT-0021
RPI KEC016 (10 ft Resistors)
Sage T03-05-30M
Schiller 55.065122
Spacelabs 7271, 700-0008-06
Tenacore 63584

Compatibility:

Manufacturer Model
Spacelabs
90309, 90367, 90367 Ultraview, 90369, 90369 Ultraview, 90492, 90496, 90496 Ultraview, 91220 mCare 300, 91369, 91496, 93300, Elance Series, Qube, Ultraview, Ultraview SL



Description of ECG cable

An ECG (Electrocardiogram) cable is a specialized cable used in medical settings to connect electrodes or leads to an ECG machine or monitor. It is an essential component for capturing and transmitting the electrical activity of the heart for diagnostic or monitoring purposes.



The ECG cable typically consists of multiple lead wires with specific connectors on one end that attach to the electrodes placed on the patient's body. The other end of the cable connects to the ECG machine or monitor. The cable carries the electrical signals generated by the heart's activity from the electrodes to the machine, allowing the machine to display and record the patient's ECG waveform.



ECG cables may vary in design and configuration based on the specific ECG system being used. Some ECG cables are color-coded to correspond to specific lead placements, such as limb leads (I, II, III) and precordial leads (V1-V6). The cables are designed to ensure accurate signal transmission and minimize interference or artifact during ECG recording.



It is worth noting that ECG cables are often detachable, allowing for easy replacement or interchangeability of lead sets depending on the patient's needs or specific monitoring requirements.
